GEC Globe Pendant assembly instructions.

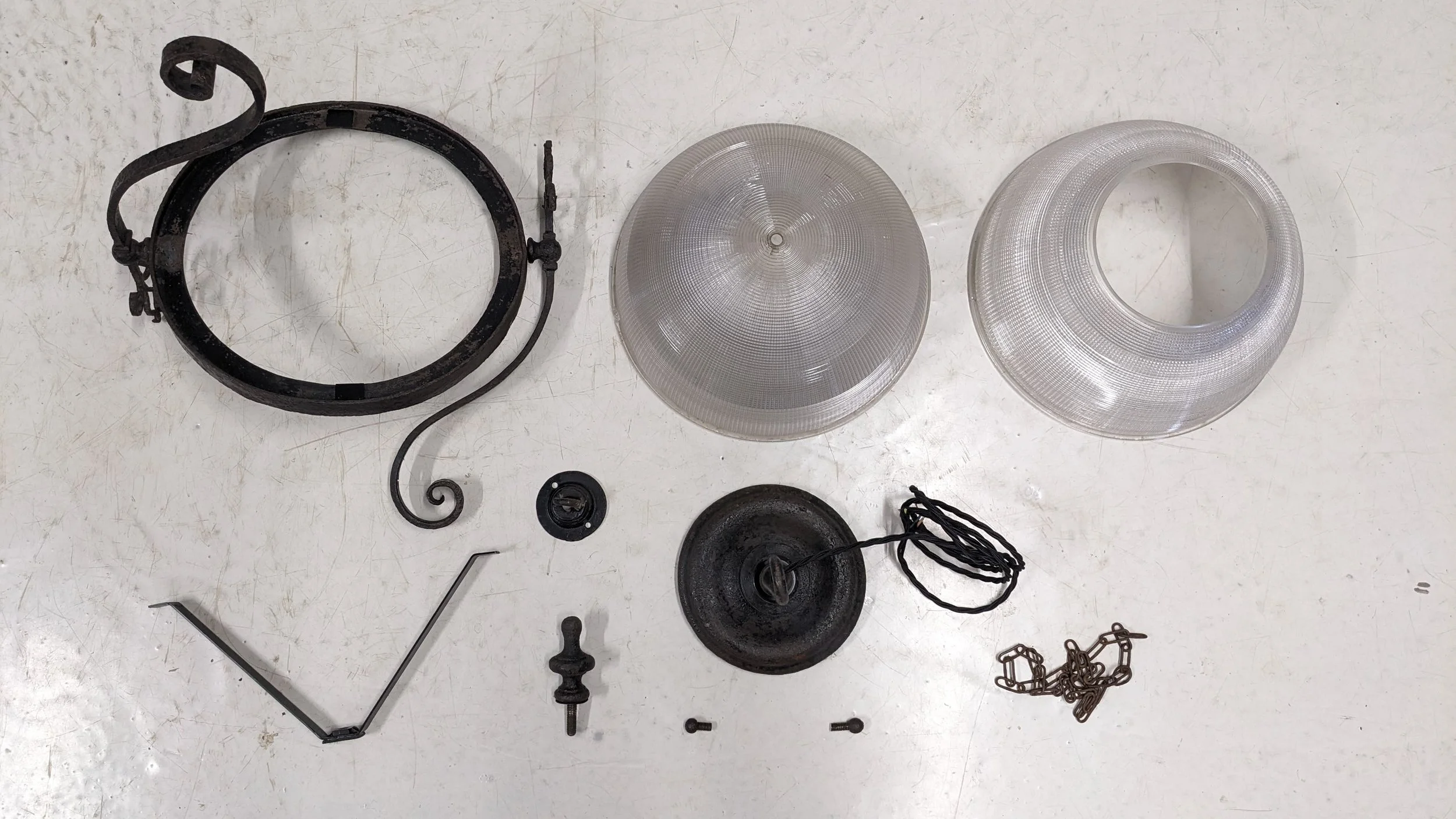

Parts List
Iron frame
Top glass bowl
Bottom glass bowl
Lower ‘V’ shaped bracket
Bottom finial
Ceiling rose
Top cap (with hook and bulb holder)
2x Thumb screws
Suspension chain

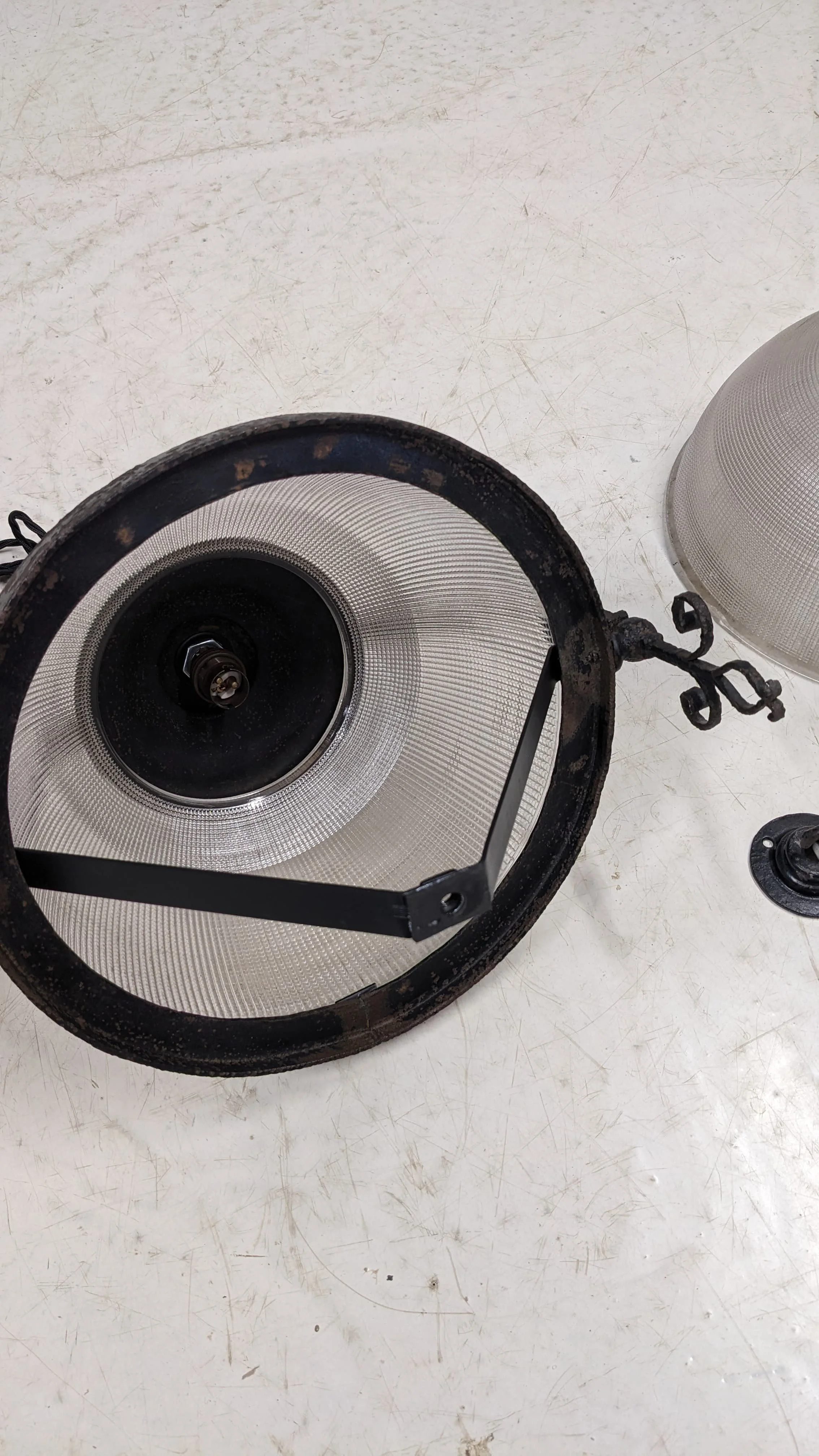

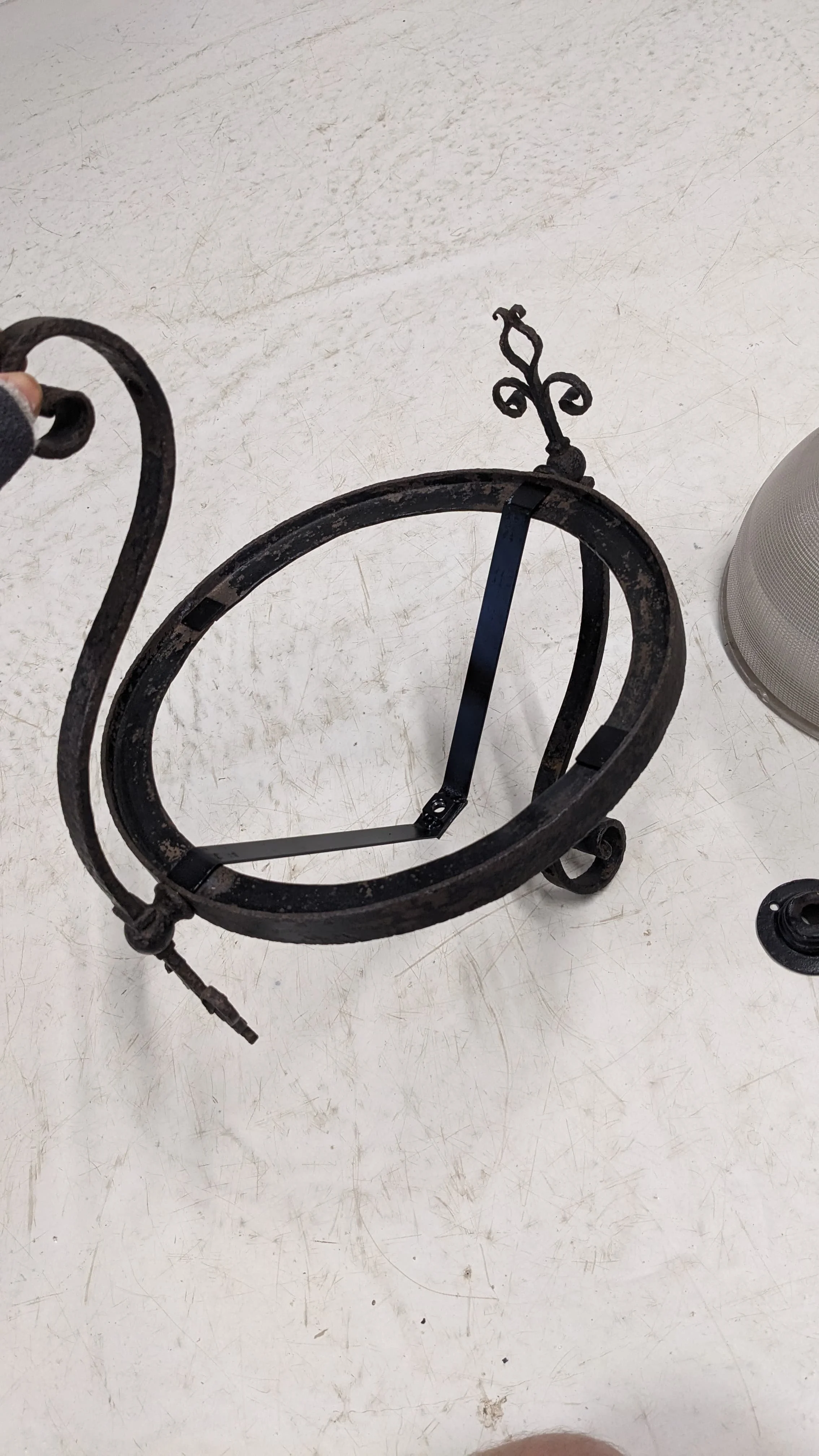

Step 1.
Start by having the iron frame in the orientation that matches the image and place the ‘V shaped bracket into the ring.

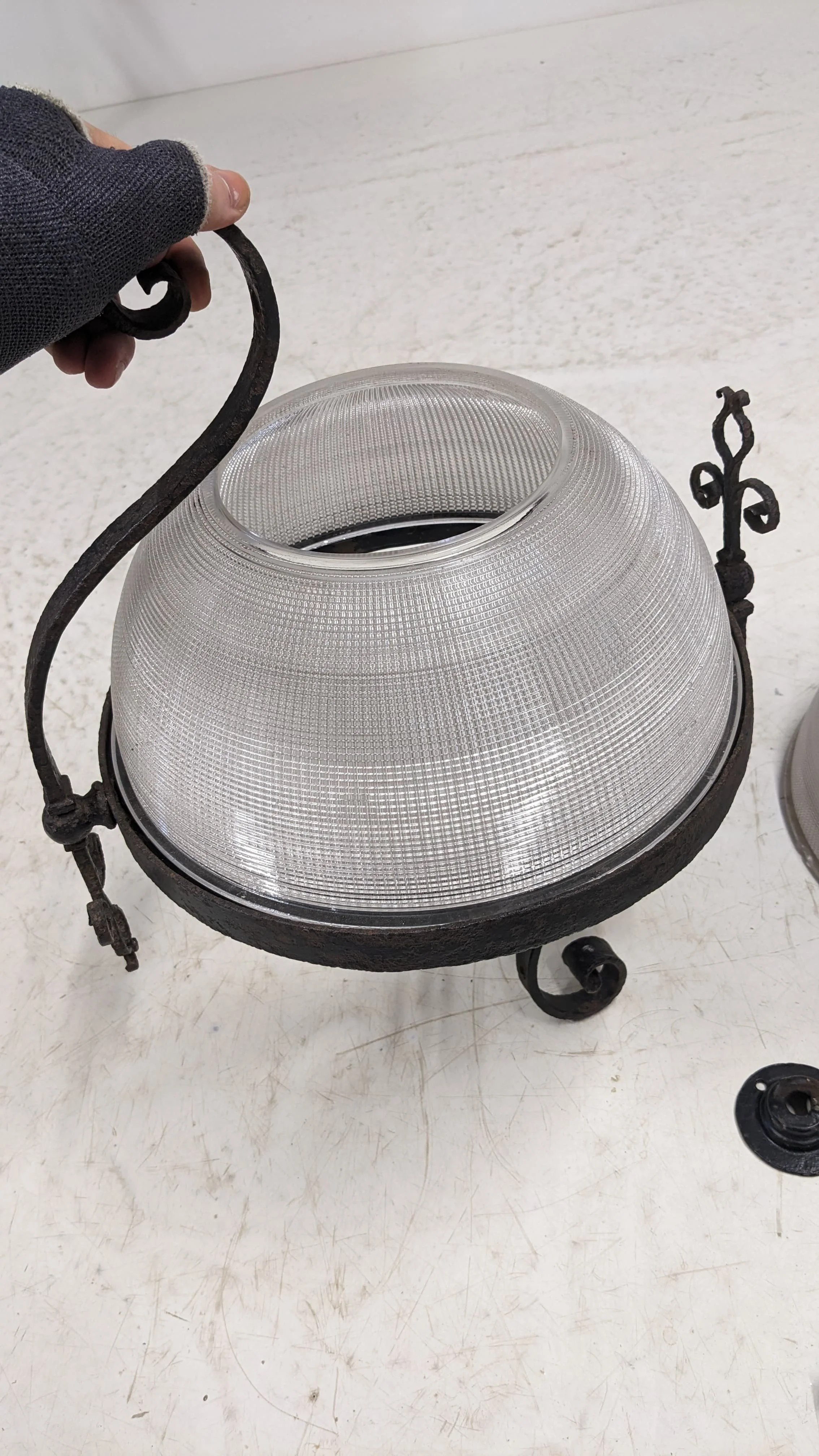

Step 2.
Place the top bowl (with the larger aperture opening) into the frame.

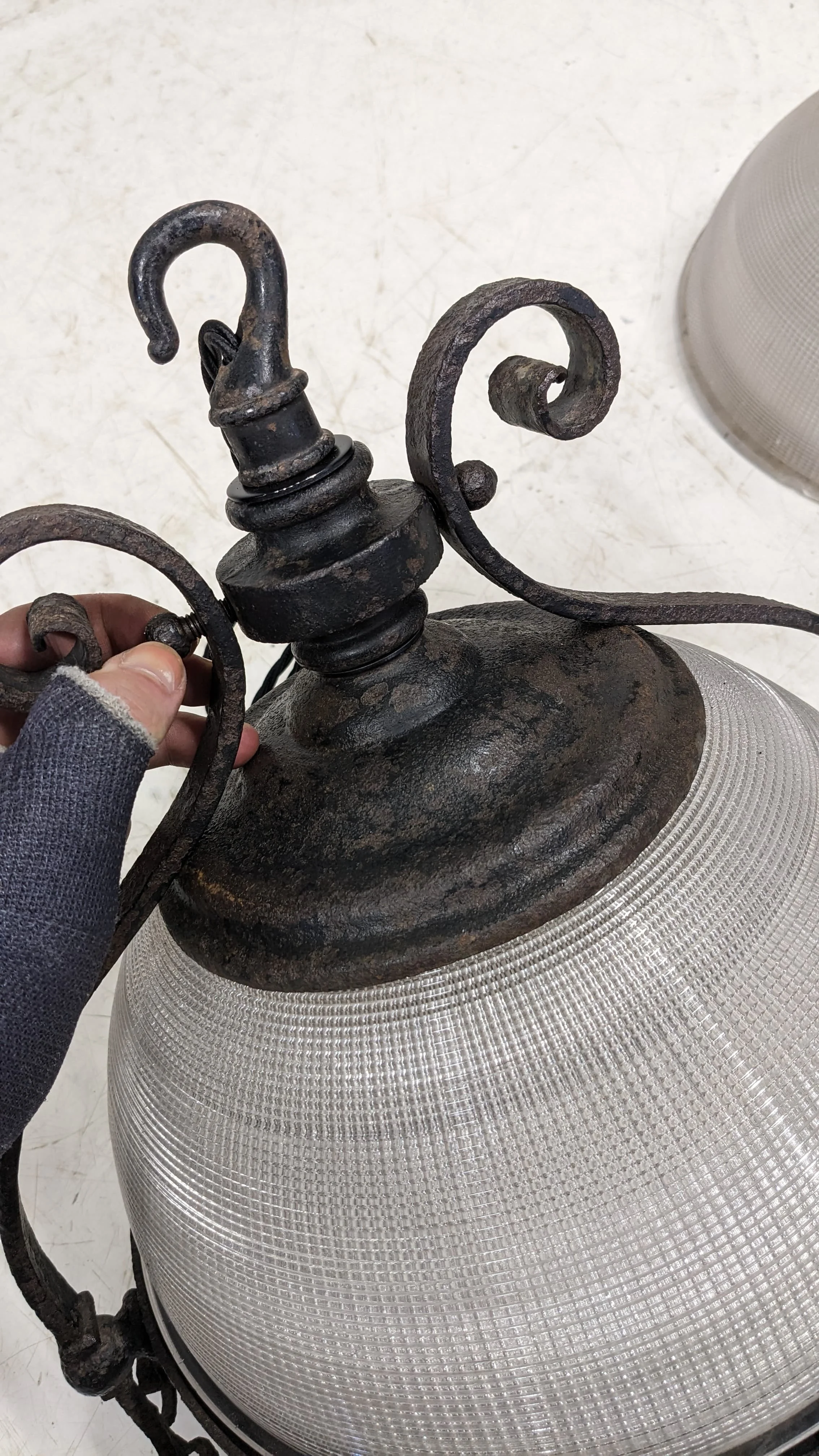

Step 3.
Place the top cap onto the glass bowl. (without a bulb - this comes later).

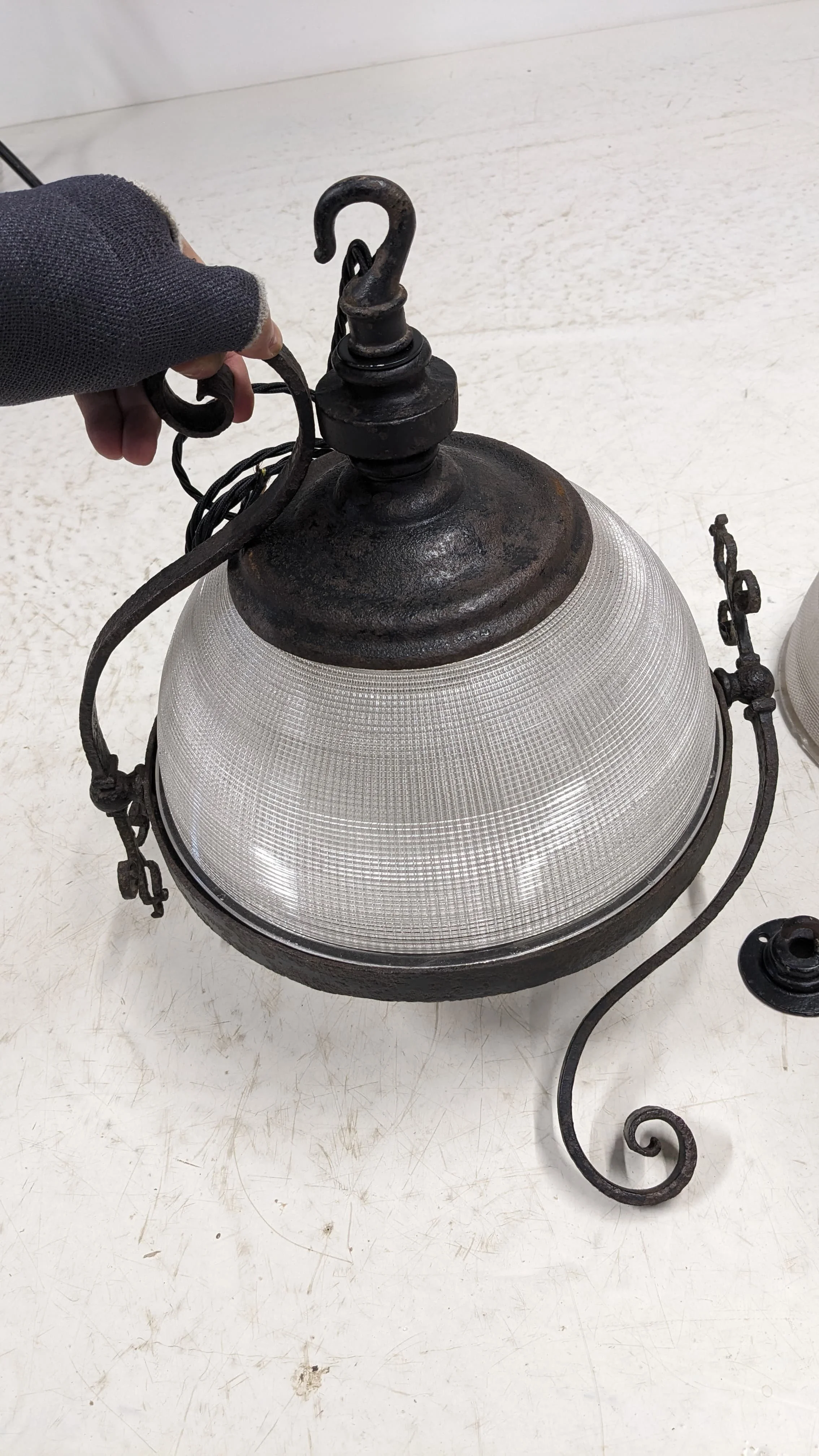

Step 4.
Swing the other arm up and lock them both into position using the two thumb screws.

Step 5.
At this stage you can now add your desired bulb (Bayonet B22) to the bulb holder.

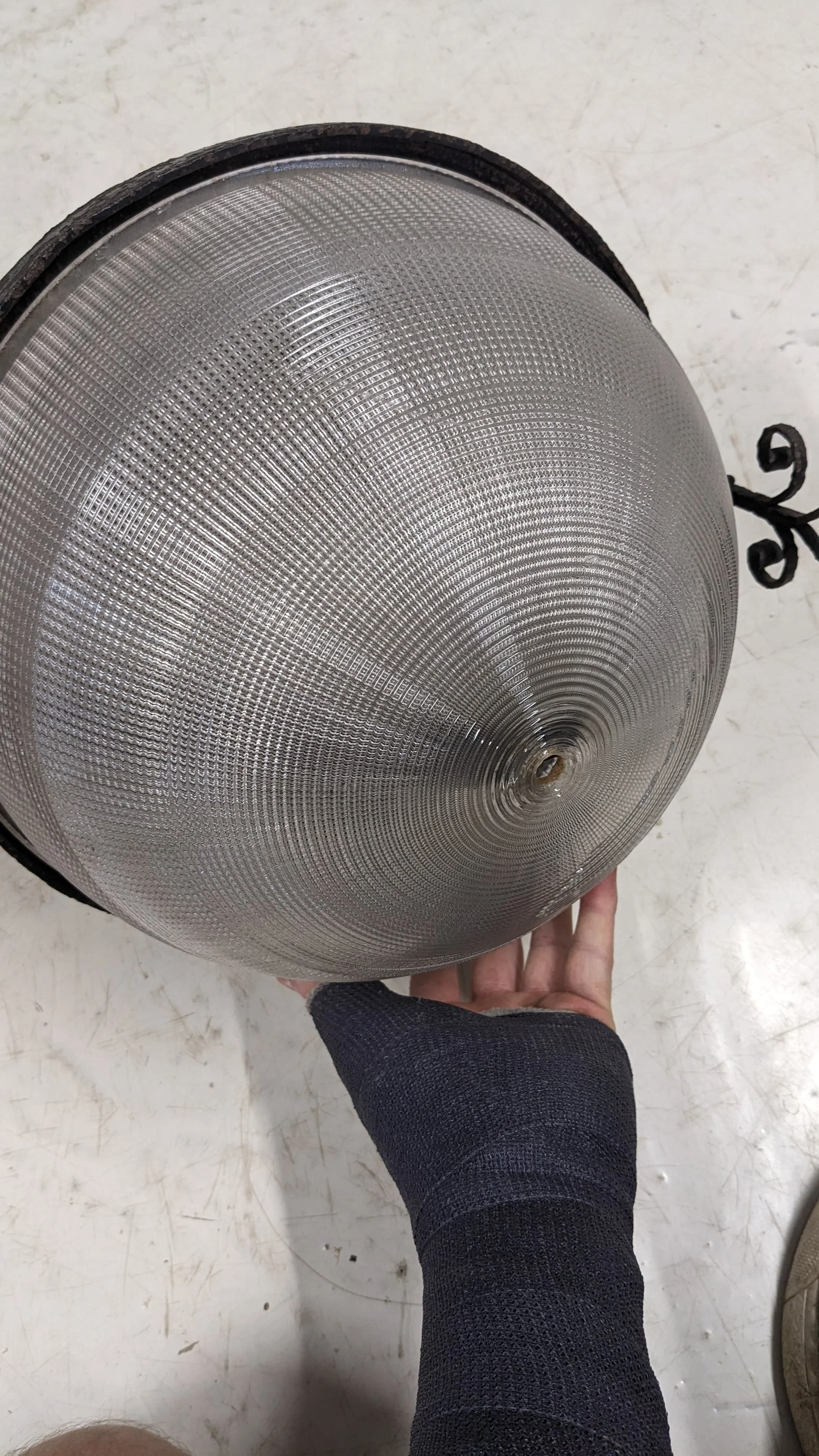

Step 6.
Lay the lamp on its side (or use an extra pair of hands) and offer the lower glass bowl up to the frame.

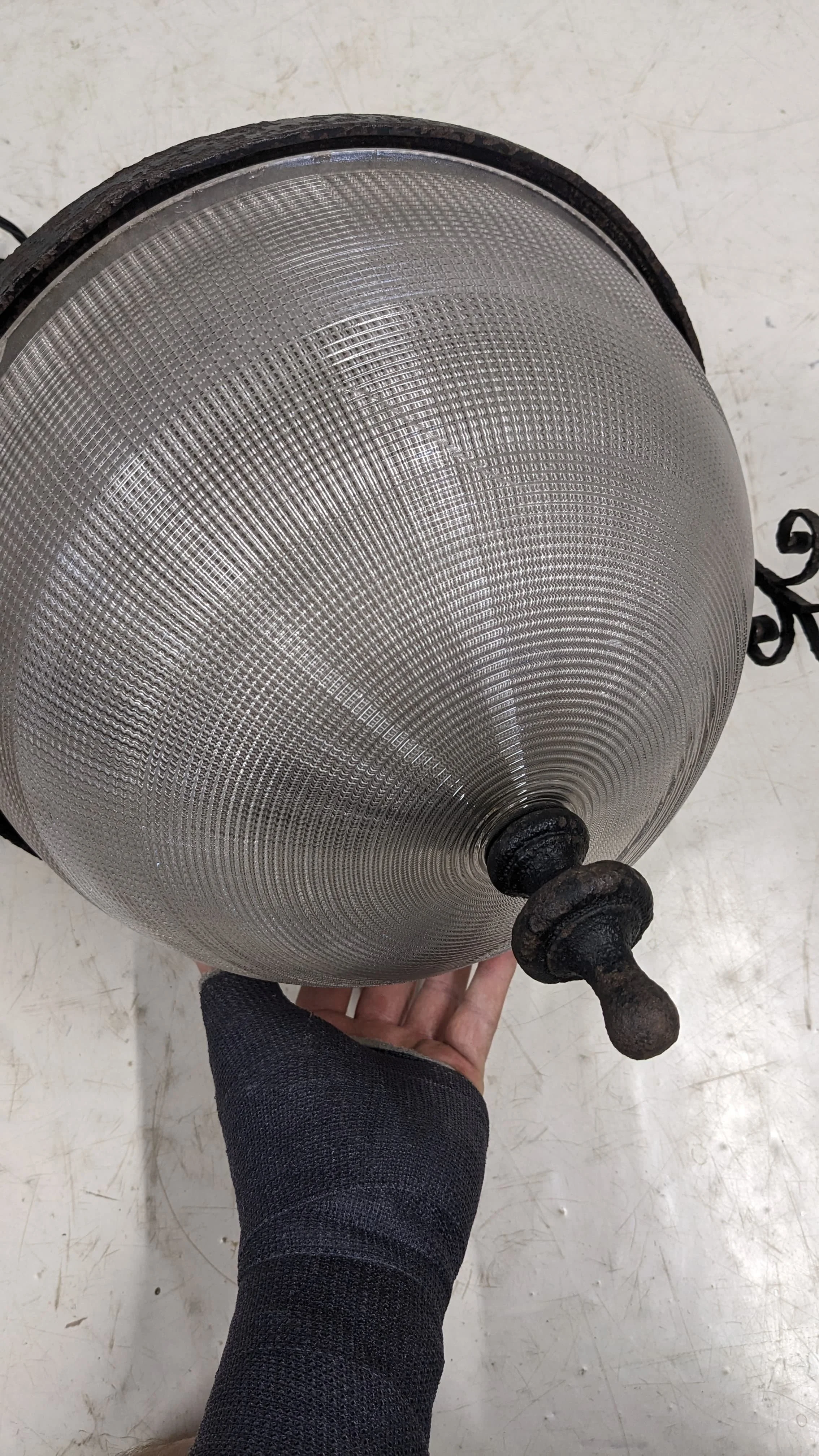

Step 7.
Screw the finial into the frame to complete.

Note: Take care not to overtighten. It only needs to be nipped up to retain the glass.
